Inclined plate dissolved air flotation device with industrial wastewater treatment dissolved air flotation

DAF Dissolved Air Flotation is one of the most important projects to separate solid and liquid and the most effective ways to remove tiny suspended particles whose specific gravity is close to water. This equipment is widely applied for water supply and drainage projects.Working PricipleAir Flotation is composed of the air

Featured Products

DAF Dissolved Air Flotation is one of the most important projects to separate solid and liquid and the most effective ways to remove tiny suspended particles whose specific gravity is close to water. This equipment is widely applied for water supply and drainage projects.

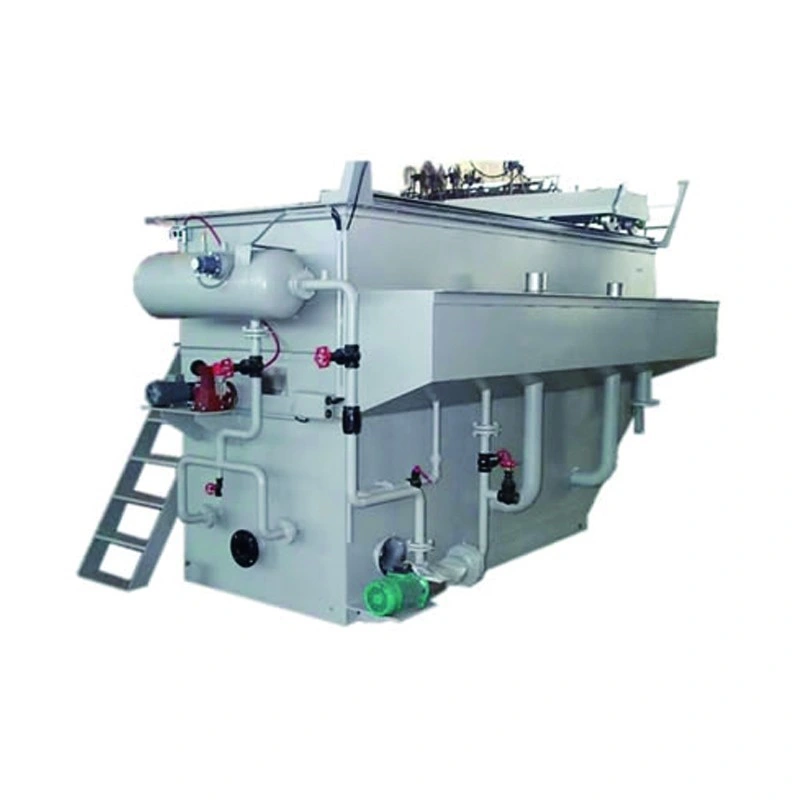

Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation


Working Priciple
Air Flotation is composed of the air flotation tank, dissolved air system, retune pipe for dissolved air, release device for water with dissolved air, slag scraping device (type of combination, trussed or chain plate can be selected according to the requirements of the uses) and electric cabinet.
  • Function
The main function of Air Flotation is the separation of solid and liquid (decrease the COD, BOD and color at the same time).
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation

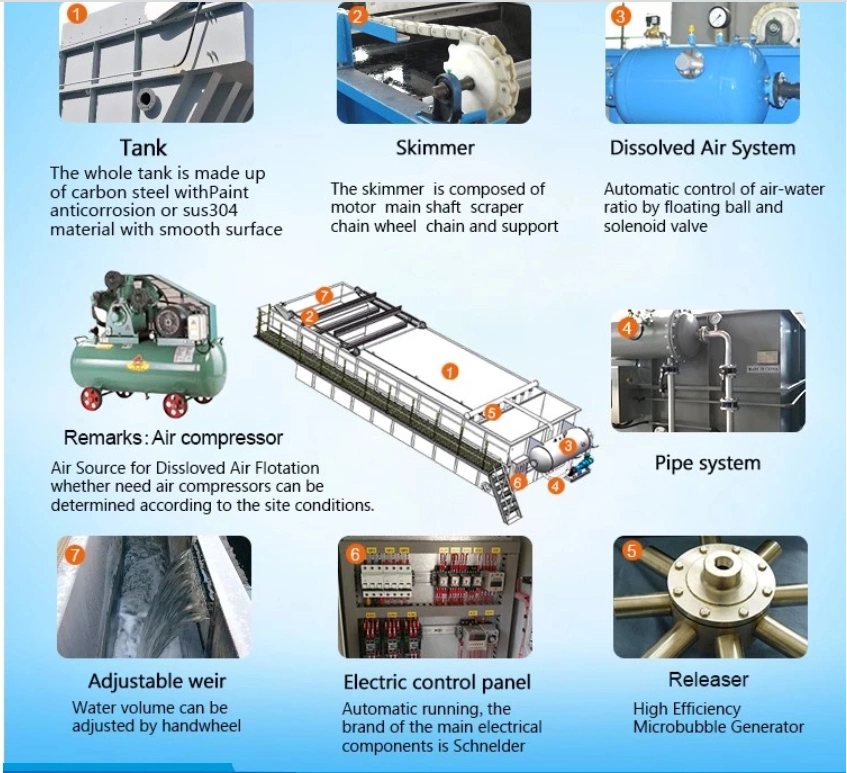

Components Display
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation

Product Paramenters
ModelCapacity (m³/hr)Motor Power (KW)Dimension (L*W*H)
MPQF-5533300*1800*2200
MPQF-101034000*2100*2200
MPQF-20207.54600*2400*2200
MPQF-30307.55200*2600*2400
MPQF-40407.56000*2600*2400
MPQF-50507.57000*2600*2400
MPQF-60607.57600*2800*2400
MPQF-70707.58400*2800*2400
MPQF-80807.59200*2800*2400
MPQF-1001001510000*2800*2600
If you wanna suitable model suggestion, welcome click me for customized services.
Flowchart
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation

System Certification
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation

Qualification
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation



Workshop Display
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation



Exhibition Show
Inclined Plate Dissolved Air Flotation Unit with Industry Wastewater Treatment Dissolved Air Flotation



FAQ
Q1. Are you a factory or a trading company?
A: We are a factory, we can control every aspect of the product and provide most cost-effective product.
Q2. How Can I find the suitable model?
A: Please provide flow rate, solids content and sludge type, we can assist you in model selection.
Q3. Can you provide sludge sample test data?
A: Yes, please give us detailed information including sludge type, solid content rate, etc. We will reply to the test data asap.
Q4. Is it OK to print my logo on the product?
A: Yes, but inform us formally before our production.
Q5. Is there any other equipment used in sludge treatment?
A: Yes, including polymer dosing system, sludge thickener, conveying device, rotary drum screen, coarse screen, dissolved air flotation, sludge scraper bridge and etc. If you are interested, contact us for further information.
