Yixing Pioniere Environmental Protection Equipment Co.,Ltd.Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pioniere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings,&

Featured Products

Yixing Pioniere Environmental Protection Equipment Co.,Ltd.

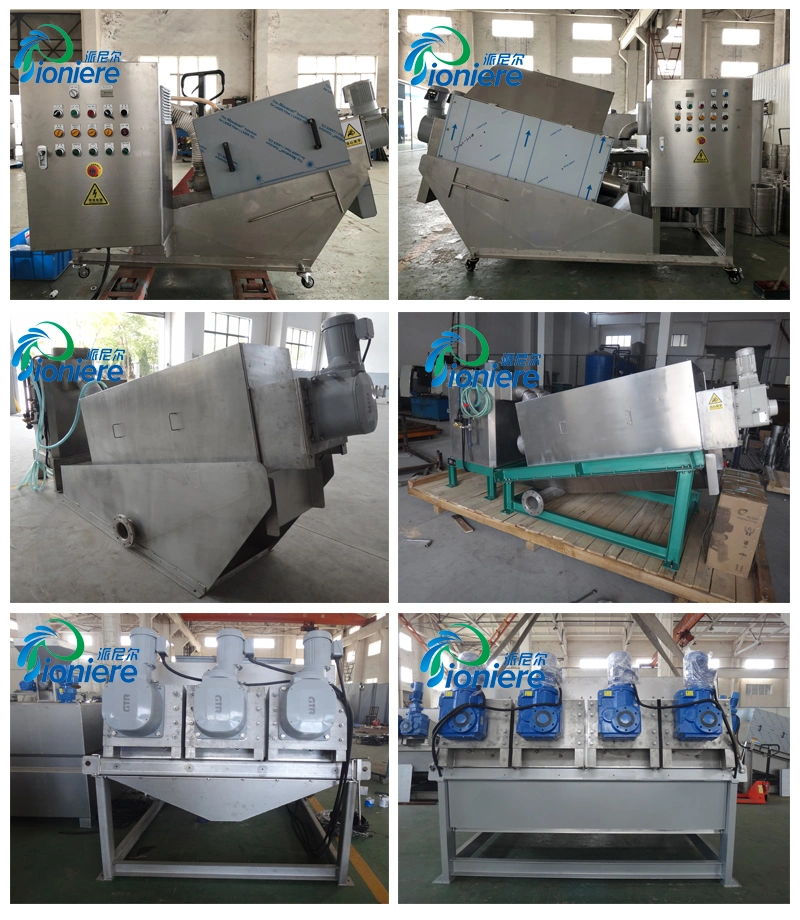

Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pioniere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment

Features
Low cost operation

Energy, water, polymer saving

Compact design, small floor space

Self-cleaning, free of clogging, easy to handle oily sludge

24h automatic continuous control, simple operation and maintenance

Widely applied in municipal sewage, papermaking, chemical industry, food and beverage processing, pharmacy, petroleum refining and extraction, breeding and slaughtering and other industrial wastewater.


Product Details

Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment

Working Principle

As equipment starts running, sludge flows into the filter cylinder and moves forward to sludge cake outlet under the thrust from screwshaft. The whole filter cylinder is composed of fixed rings, moving rings and shaft. The first two sections are thickening zone, last two are dewatering zone, The space between screw blades gets more and more narrower, which means the inner pressure gradually gets bigger. Under this pressure, liquid is squeezed out from the sludge and leaks from the small gaps between rings. And the left dry solid is pushed to the sludge cake outlet.
Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment

Specification


Model
No.
DS standard capacity (kg/h)Sludge Volume (m³/h)
Concentration Low~High2000mg/L5000mg/L10000mg/L20000mg/L25000mg/L50000mg/L
XF 10135~1.5~0.6~0.5~0.25~0.2~0.1
XF 131610~3~1.2~1~0.5~0.4~0.2
XF 1321220~6~2.4~2~1~0.8~0.4
XF 2021830~9~3.6~3~1.5~1.2~0.6
XF 3013050~15~6~5~2.5~2~1
XF 30260100~30~12~10~5~4~2
XF 30390150~45~18~15~7.5~6~3
XF 352120200~60~24~20~10~8~4
XF 353180300~90~36~30~15~12~6
XF 403270450~135~54~45~22~18~9
XF 404360600~180~72~60~30~24~12

Model
No.
Dimension
(mm)
Power
(kw)
N.W.
(kg)
LWH
XF 101181675610400.2190
XF 131196975610400.2205
XF 132206991010400.3275
XF 202250093512700.8470
XF 301325598516000.8820
XF 3023455129516001.21350
XF 3033605169016001.951820
XF 3524140155022503.752450
XF 3534420210022506.03350
XF 4035150235022506.04950
XF 4045350285025508.25250

Project reference

Sludge type: Palm oil sludge
Location: Peru
Screw press : XF-352
Polymer dosing machine : PJY-2000
Shaftless Screw Conveyor: WLS-280 (Angle: 20°)

Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment



Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment


About us

Yixing Pioniere, established in 2012, is specialized in manufacturing, developing and marketing of multi-disc sludge dewatering equipment and related wastewater treatment system. With the spirit "High Quality, Fast Service", and against strong technical force, sophisticated equipment, prompt and comprehensive service, we believe we can be your best long-term cooperator.

Spare Parts

Sludge Dewatering Equipment for Waste Gas Treatment of Sewage Treatment




Remarks

Model selection: Sludge type, sludge volume, solid content and daily runtime of machine are necessary.

Raw material: SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).

Manufacturer: We have our own workshop so that best quality and lowest price can be provided for you.

Corollary equipments: Sludge pump and polymer dosing pump are used together with screw press.

Customization: Custom-made is available.
